Osnovne karakteristike

Detalji

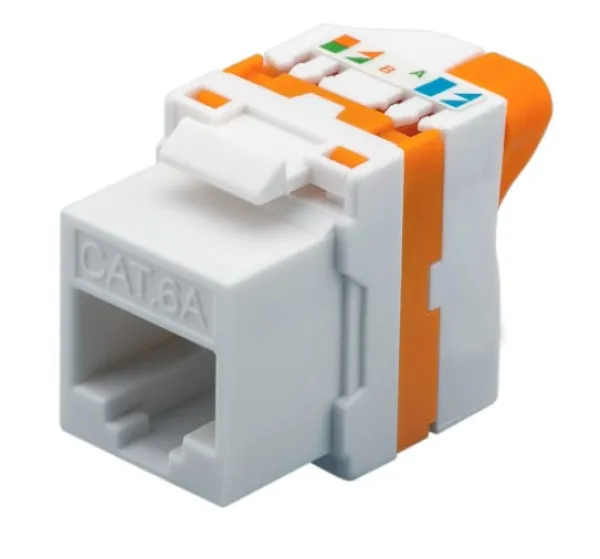

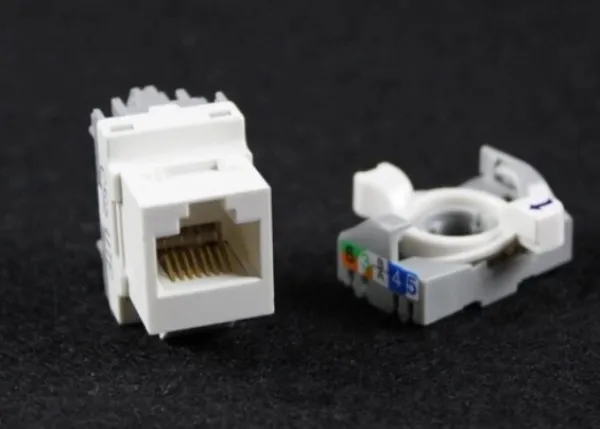

Legrand type

(Rotary type Cat6a Tool-less Kyestone Jack)

Spaja se bez alata
100% passed FLUKE DTX-1800 test,

IDC fits for 22-26 AWG solid wire, Insertion Life:750 times MIN,

Punching Life: 250 times MIN,

Meet TIA/EIA-T568A and T568B category 6A requirements,

It has been designed to exceed TIA/EIA specification.

The bandwidths of category 6A up to 500 MHZ,10Gbps.

Material: Housing Body: PC UL94V-2 (Customized UL94-V0), IDC Housing: PC

IDC Contact: Phosphor Bronze with Nickel Plating 100u“,

Contact Pin: Phosphor Bronze with Gold Plating 3u“-50u“,

Gold Plating Thickness: Default 3u“, customized 6u“-50u“

PCB: FR4 1.6mm(0.04u“) thickness,2 layers
