Matična ploča Gigabyte AM5 X870 EAGLE WIFI7

33.310 RSD
*sve prikazane cene su sa uračunatim pdv-om
EAN: 4719331864996Brend: GIGABYTESKU: 2493349
Na stanju.
Dostava kroz 1-3 radna dana.

Opis proizvoda

Model: Matična ploča Gigabyte AM5 X870 EAGLE WIFI7
Robna grupa: AMD matične ploče
Uvoznik:
Zemlja porekla:
Prava potrošača: Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača

ModelGigabyte X870 EAGLE WIFI7 AM5 DDR5 ATX Matična ploča
Procesorsko podnožje (Socket)AMD Socket AM5
Skup čipova (Chipset)AMD X870
Podrška za procesoreAMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors
Tip memorije (RAM)DDR5
Broj memorijskih slotova4x 288-Pin DDR5
Podrška za memorijeSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Podrška za grafiku - portoviIntegrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz
Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support native HDMI 2.1 TMDS compatible ports.
Slotovi za proširenja1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
M.2 portovi3x M.2 Socket 3
Čuvanje podataka - portovi1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
SATA portovi4x SATA 6Gb/s
LANRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Bežična mrežaMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- Support for 11be 160MHz wireless standard
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- Support for 11be 160MHz wireless standard
Bluetooth5.4
Zvuk (Audio)Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
USB portoviCPU+ASMedia USB4 controller:
- 2 x USB4 USB Type-C ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers

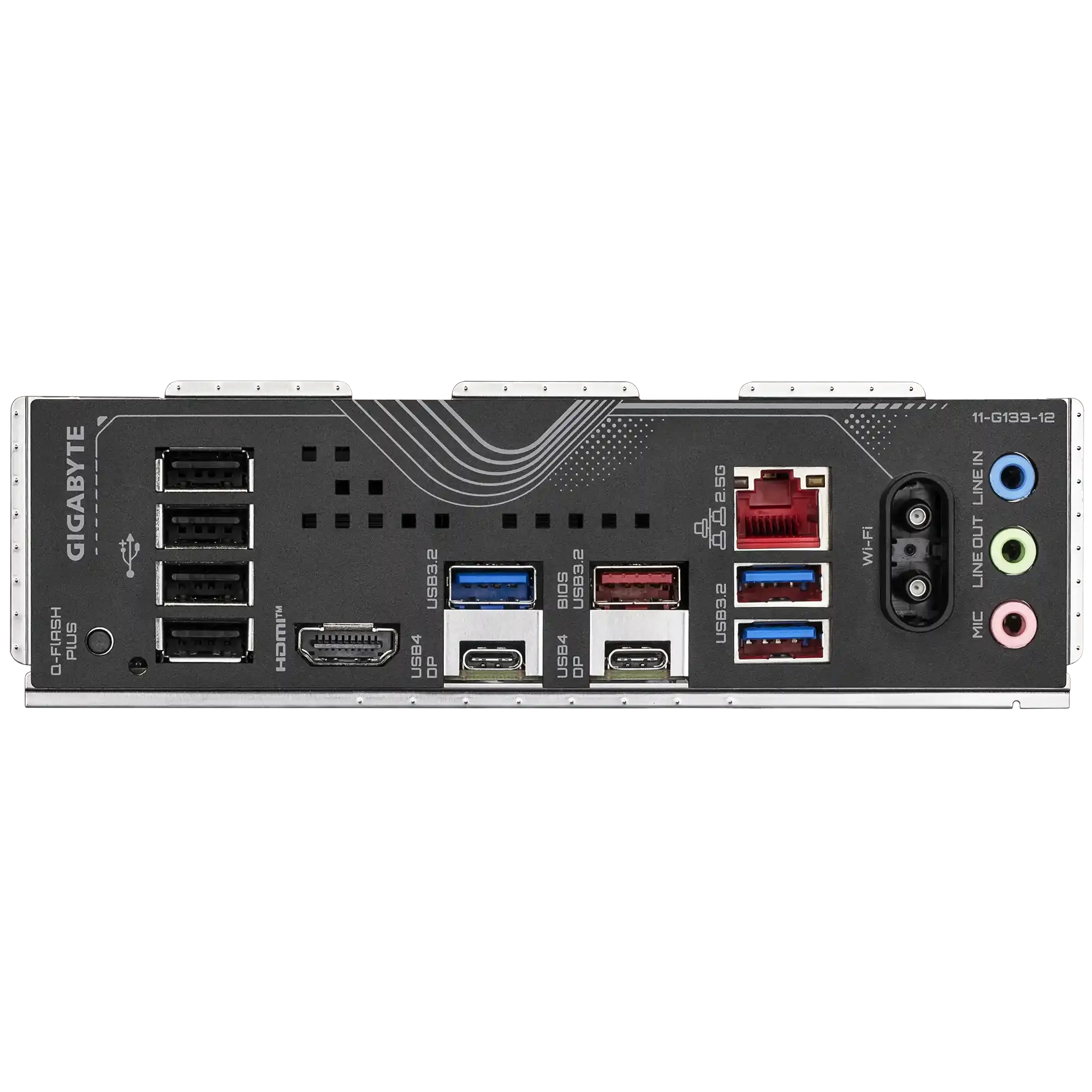

Konektori na zadnjoj strani1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port
2 x USB4 USB Type-C ports (DisplayPort)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Unutrašnji konektori1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Posebne mogućnostiVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Operativni sistemWindows 11
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
FormatATX
Prava potrošača:Zakonska saobraznost 2 godine
EAN:4719331864996


Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji proizvoda.
