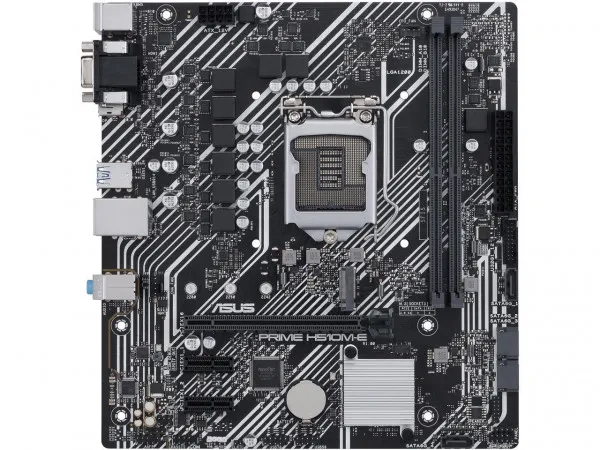

MB s1200 ASUS PRIME H510M-E Slika 1

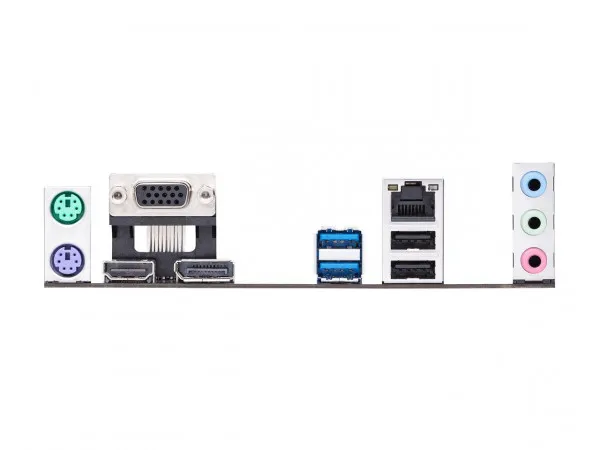

MB s1200 ASUS PRIME H510M-E Slika 2

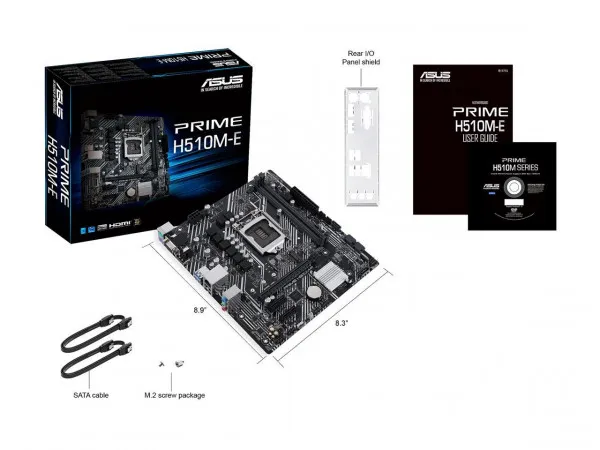

MB s1200 ASUS PRIME H510M-E Slika 3
MB s1200 ASUS PRIME H510M-E Slika 1MB s1200 ASUS PRIME H510M-E Slika 2MB s1200 ASUS PRIME H510M-E Slika 3

MB s1200 ASUS PRIME H510M-E

7.540 RSD
*sve prikazane cene su sa uračunatim pdv-om
EAN: 4711387234945Brend: ASUSSKU: 2511904
Nije na stanju.
Uslovi kupovine i dostaveOpcije plaćanja

Opis proizvoda

Model
Brand ASUS
Model PRIME H510M-E
Supported CPU
CPU Socket Type  LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors*

* Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset  Intel H510
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2×288pin
Memory Standard DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133*

* 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported 64GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express x1 2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel H510 Chipset:
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

* The M.2 slot shares bandwidth with SATA6G_2. When a device in SATA mode is installed on the M.2 slot, SATA6G_2 port cannot be used.
Onboard Audio
Audio Chipset  Realtek ALC897/887
Audio Channels  7.1 Channels*

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Intel I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Dimensions (W x L) 8.9" x 8.3"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features Special Features:
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header

Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS:
128 MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bit
Packaging
Package Contents Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual

Osnovne karakteristike
Procesorsko ležište (socket)Intel® 1200
Formatmicro ATX
Maksimalna količina memorije64
Memorijski slotovi2 x DDR4
Tip memorijeDDR4
Ukupno USB priključaka6

Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji proizvoda.
